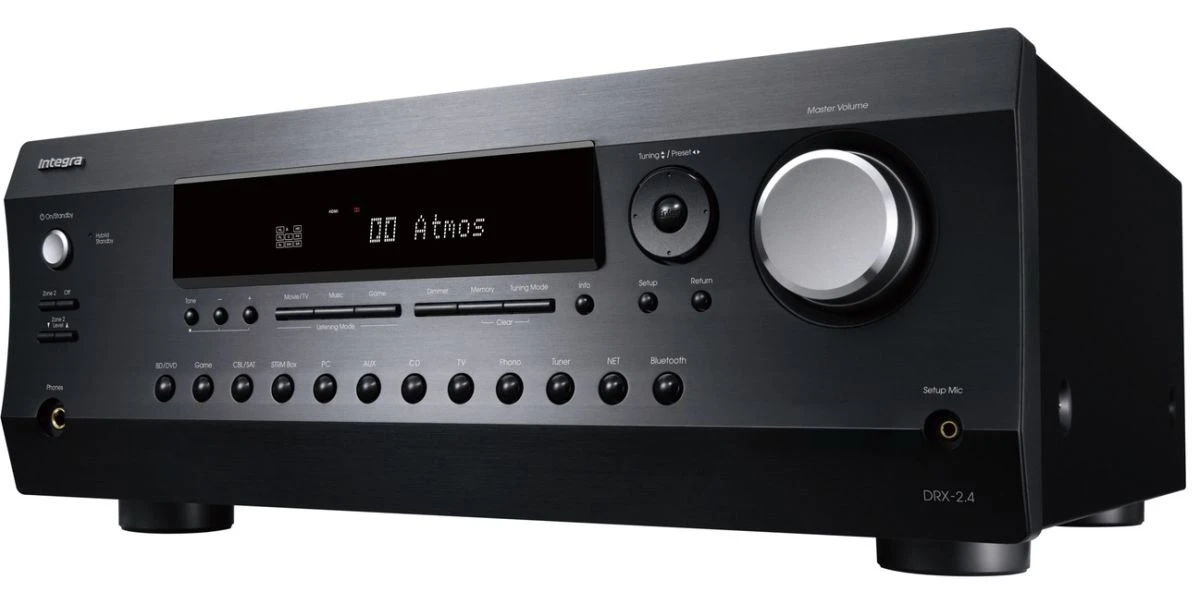

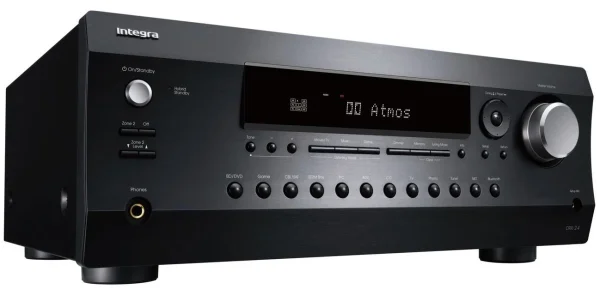

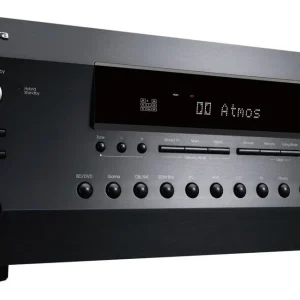

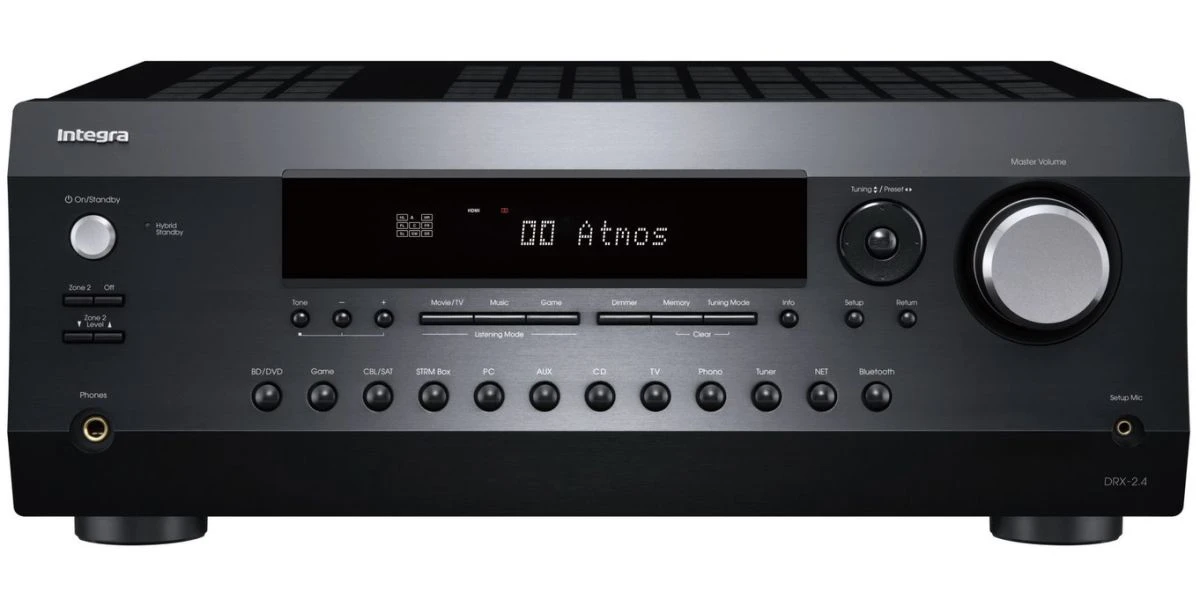

Amplificateurs Home Cinéma Integra Drx2.4bmma grande surprise

Audio & Video Highlights

• 5.2.2-ch Dolby Atmos ® and DTS:X ® playback
• DTS Virtual:X ™ and Dolby Atmos Height Virtualization
• Dolby Surround ® and DTS® Neural:X upmixing
• DMI ®*1supports 8K/60p (4:4:4/12-bit* 2 , 4:2:2/12-bit *2, 4:2:0/10-bit), 8K/30p (4:4:4/12-bit *2 , 4:4:4/10-bit, 4:2:2/12-bit), 4K/120p (4:4:4/12-bit *2, 4:4:4/10-bit, 4:2:2/12-bit) video passthrough, HDR10+, Dolby Vision, HDR10, HLG, BT.2020, VRR (Variable Refresh Rate), DSC (Display Stream Compression), ALLM (Auto Low Latency Mode), QFT (Quick Frame Transport), QMS (Quick Media Switching), eARC (enhanced Audio Return Channel), DeepColor, x.v.Color ™ , LipSync, and HDCP 2.3
• HDMI Main Out with eARC for encoded HQ audio, Sub/Zone 2 Out with OSD *3
• Bidirectional Bluetooth ® wireless technology Version 4.2 + LE (A2DP v1.2, AVRCP v1.3; RX: SBC/AAC, TX: SBC/Qualcomm ® aptX™/apt X HD
• Separate Zone 2 speaker outputs enable 5.2.2-ch + Zone 2 speaker connection, 5.2.2-ch playback switching to 5.2-ch + Zone 2 playback *
• Dedicated Zone 2 DAC supports synced/independent D/A audio distribution (including HDMI/SPDIF/NET *5 ) via Zone 2 speaker outputs and Zone 2 pre-out *6
• Share any MAIN audio source to a wireless headphone dock via Zone B line-out
• Phono equalizer (MM) and SACD (Super Audio CD) playback via HDMI (2.8 MHz 2-ch/multichan
• AccuEQ Room Calibration with subwoofer EQ and AccuReflex ™
• Original DSP-based Vocal Enhancer clarifies in-program vocals/dialog

Amplification Technology

• 80 W per channel (8 ohms, 20 Hz–20 kHz, 0.08% THD, 2-ch driven, FTC)
• Low-impedance amp system with 4-ohm speaker-driving capability
• Massive custom transformer and hand-selected audio parts
• Non-phase-shift amp-circuit topology for clear and cohesive sound
• Optimum Gain Volume Circuitry
• Precision DAC supports 192 kHz/24-bit multichannel D/A conversion
• VLSC ™(Vector Linear Shaping Circuitry) filtering technology (Front L/R)
• PLL (Phase-Locked Loop) jitter-cleaning circuitry for SPDIF digital audio
• Front L/R speaker bi-amping capability in 5.2-ch configuration
• Tone controls (bass/treble) for Front L/R channels

Network & Multi-Zone Audio Features

• Isolated quad-core SoC board supports high-speed 802.11ac (2×2 MIMO *7 ) Wi-Fi ®
• Works with Sonos supporting multiple Sonos Connect/Port control and Volume Passthrough mode
• Supports Amazon Music HD *8, Spotify® , TIDAL, TuneIn, Pandora ® , and Deezer *
• Works with Alexa supporting multi-room music
• Works with Hey Google*12 and Chromecast built-in
• AirPlay 2 multi-room audio with Siri voice control
• DTS Play-Fi ®*13 multi-room audio via Integra Music Control App *
• Compatible with the Integra Remote app for iPad ®, iPhone ®, and Android
• Roon Tested certified for the Roon Core
• Hi-Res Audio via network (DSD 11.2 MHz/5.6 MHz/2.8 MHz*15, FLAC, WAV [RIFF], ALAC, and AIFF to 192 kHz/24-bit

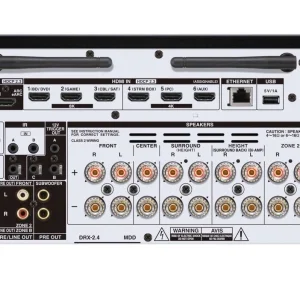

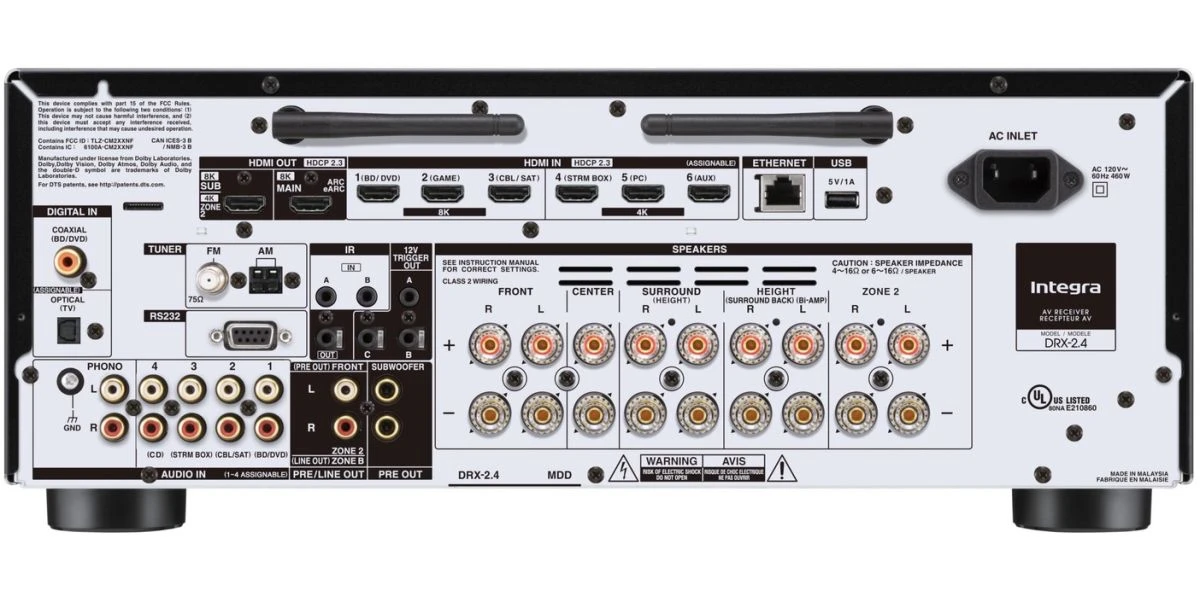

Audio-Video Connections

• 6 HDMI inputs, Main Out (eARC), Sub/Zone 2 Out
• 2 digital audio inputs (rear, 1 optical, 1 gold-plated coaxial, assignable
• 4 gold-plated analog RCA audio inputs (rear, assignable)
• Gold-plated phono input and built-in equalizer (MM) for turntable connection
• USB input (5 V/1 A) for audio playback (rear)
• Gold-plated 1 / 8 ̋ (3.5 mm) AccuEQ setup mic input (front)
• Gold-plated 1 / 4 ̋ (6.35 mm) headphone jack
• 9 gold-plated banana-plug-ready speaker posts with transparent knobs (including Zone 2 )
• Dedicated gold-plated Zone 2 speaker outputs
• Gold-plated Front L/R pre-out, Zone 2 pre-out, and Zone B line-out (analog RCA *)
• 2 subwoofer pre-outs
• Ethernet LAN terminal

Custom Integration Features

• 10BASE-T/100BASE-TX Ethernet supports setup and IP control via web browser
• RS-232 input for external control and automation
• Works with Crestron ®, Control4 ®, Savant, URC, ELAN, and RTI automatio
• 2 IR inputs and 1 output
• 3 programmable 12 V trigger-outs with adjustable delay (A: 100 mA, B: 25 mA, C: 25
• Dealer-settings memory storage and recall function
• AC inlet for detachable IEC power cable
• Optional rack-mount kit (IRK-155-3D)

Additional Features

Aluminum front panel and volume knob One-touch volume memory preset assignment to individual A/V inputs via front panel OSD function displays A/V input signal data, output signal/settings data, and network informatio Dolby ® TrueHD and DTS-HD Master Audio ® decodin Advanced Music Optimizer ™ improves compressed audio playback quali High-definition GUI over HDMI 4K to 8K, 1080p to 8K/4K video upscaling via HDMI Crossover Adjustment (40/45/50/55/60/70/80/90/100/110/120/130/150/180/200 Hz) A/V Sync Control (Up to 500 ms in 1 ms steps at 48 kHz*17) Sleep timer, HDMI passthrough, and network stand 40 FM/AM/internet radio presets with station-naming (10 characters) 3-Mode display dimmer (Normal/Dim/Dimmer)
