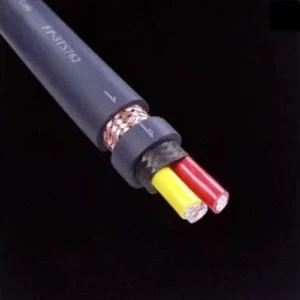

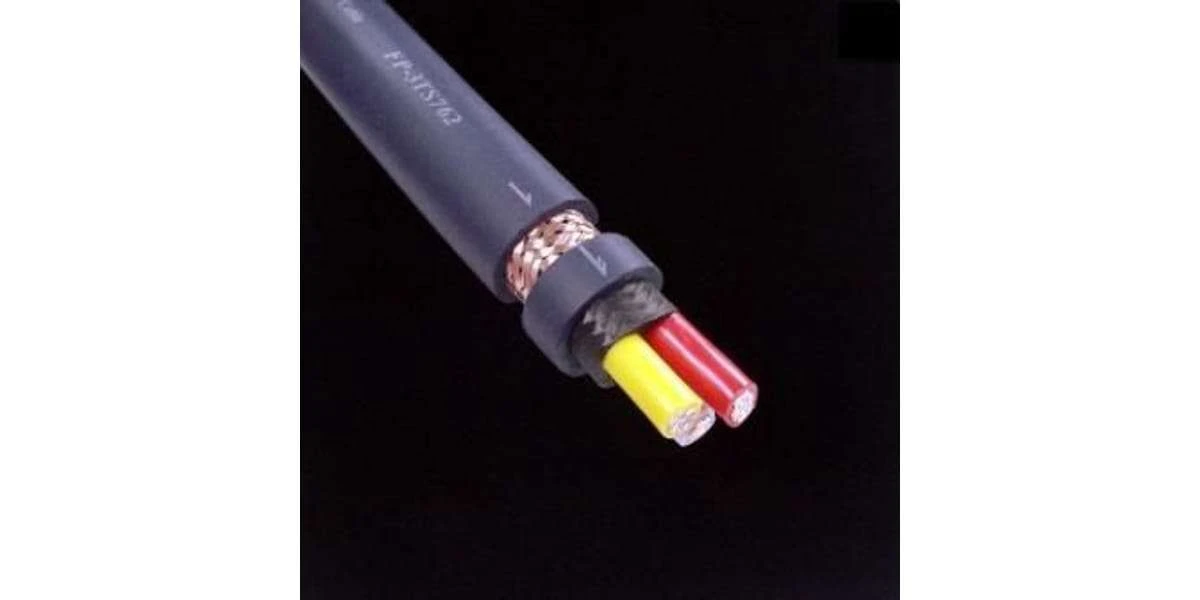

FP-3TS762
POWER SUPPLY CABLE(40M/Reel) Adaptable to 20A

-Power cord termination with Furutech FP 209 spades-

RATING

10 AWG α-Conductor(4.93 Sg.mm)

FEATURES

α(Alpha)-μ–OFC Conductor is the fine μ–OFC conductor wire strands treated with the α(Alpha) process.

Engineer’s listening notes: Punchy, tight, deep bass, excellent transient and power response

SPECIFICATIONS

– Conductor : α(Alpha)-μ–OFC Conductor (7X35/0.16mm) (~10 AWG) / (4.93 sq.mm)
– Insulation:PE(Red?Natural?Yellow) Dia.:5.2mm Red=Live?Yellow=Neutral?Clear=Earth.
– Twisting:3 Cores Twisted Together
– Inner Sheath:Flexible PVC (Black)
– Shield:0.12mm α(Alpha) conductor wire Braid
– Sheath:Flexible PVC (Dark Purple)
– Overall Diameter: 15.5 mm

– Electrical Properties / Test Method
Max. Conductor Resistance: 2.4 ω/km, JISC3005 6 20°C
Min. Insulation Resistance: 2500 Mω?km, JISC3005 9.1 20°C
Dielectric Strength: AC 3000 V/1 min., JISC3005 8
