FREQUENCY RESPONSE |
18Hz – 20kHz |
---|---|
SENSITIVITY1 |
Avg. Sensitivity of HF – 110dB Avg. Sensitivity of LF – 107dB |
POWER HANDLING |
LF – 300W / 1200W HF – 100W / 400W |
MAXIMUM SPL |
125 dB/1m (Using DSP) |
NOMINAL IMPEDANCE |
LF – 8 ohms, minimum 3.5 ohms at 160Hz HF – 16 ohms, miminum 7.6 ohms at 4.3kHz |
CROSSOVER FREQUENCY |
340 Hz |
HIGH FREQUENCY DRIVER |
K-693 7” Titanium Diaphragm Compression Driver with 5” Voice Coil |
LOW FREQUENCY DRIVER |
Dual K-283 12” Fiber-Composite cone woofers |
ENCLOSURE MATERIAL |
MDF |

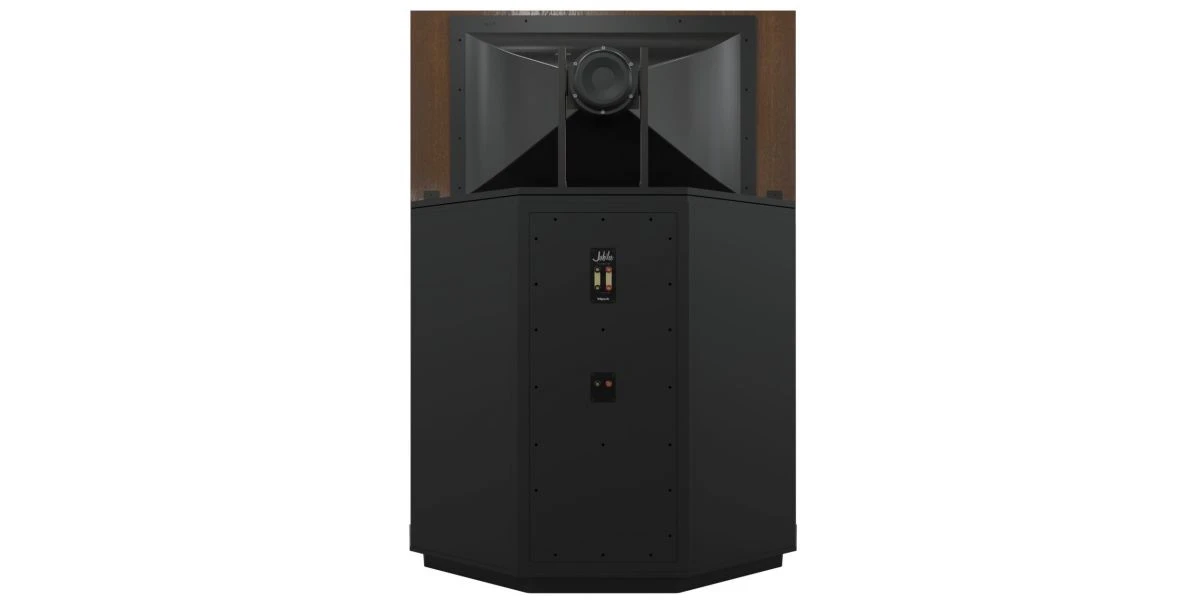

INPUTS |
5 way binding post |
HEIGHT |
69.5” (175.26 cm) |
WIDTH |
50.25” (127 cm) |
DEPTH |
30.25” (76.2 cm) |
WEIGHT |
LF – 330 lbs (149.68 kg) HF – 78 lbs (35.38 kg) |
FINISH |
Black Ash, American Walnut |
GRILLE |
Salt and Pepper Cloth |
From Dreams to Reality

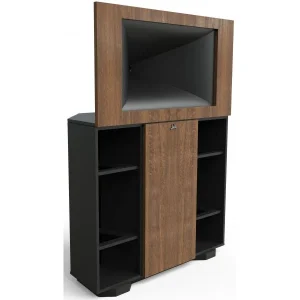

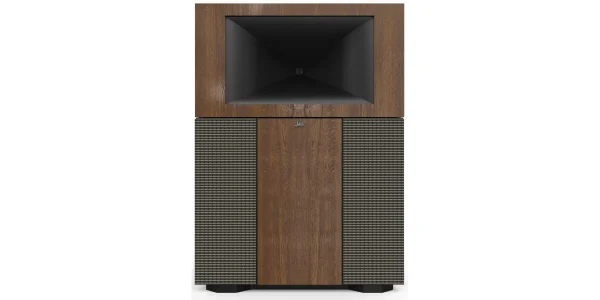

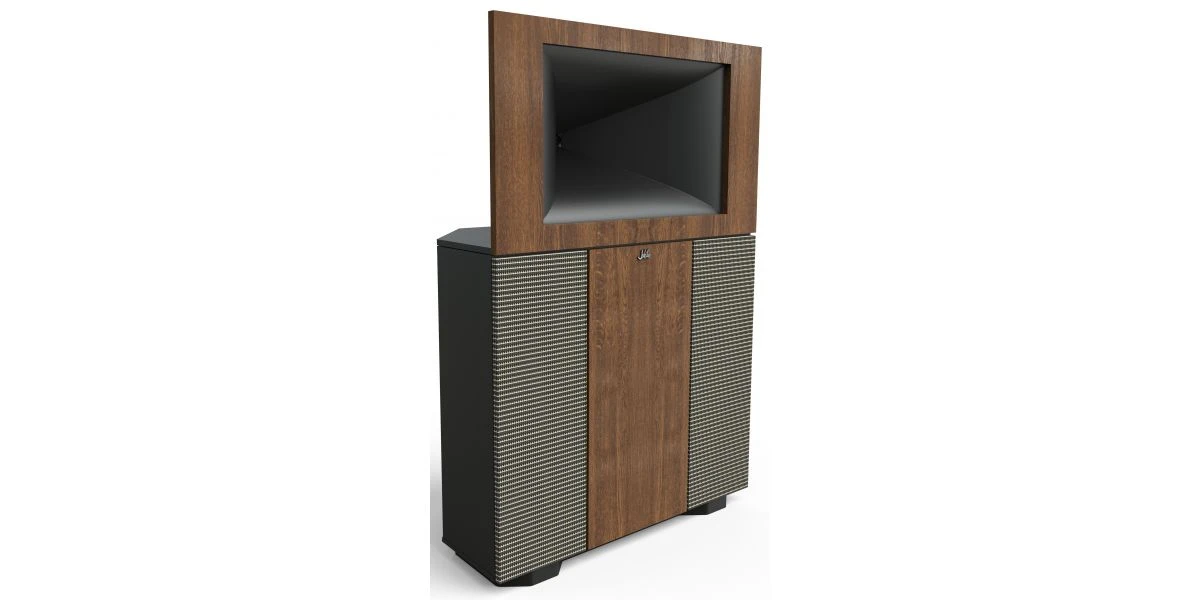

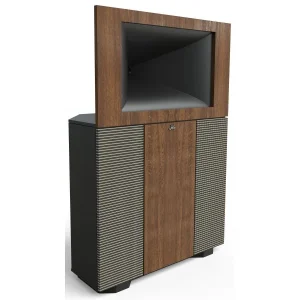

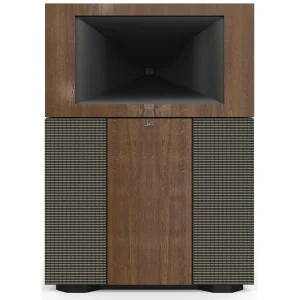

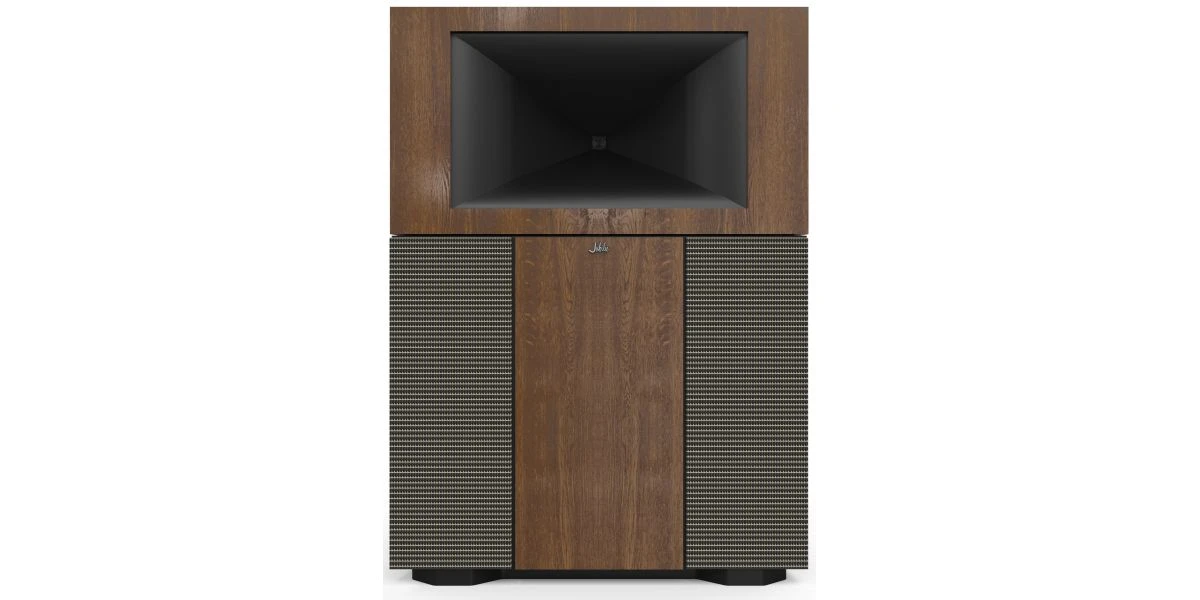

Designed to deliver the ultimate listening experience, the Klipsch Jubilee is a fully pavillon-loaded two-way loudspeaker incorporating the latest acoustic technology, including a patented pavillon-loaded vented low frequency enclosure and an all-new pavillon-loaded compression driver.
Concert Quality at Home
Musically accurate, the Klipsch Jubilee features an optimal active crossover designed for perfect phase coherency. You get smooth, effortless performances as though the musicians are in the room.
Feel the Music
The Klipsch Jubilee’s one-dimensional, folded-pavillon vented system creates an unparalleled listening experience:
- Maximizes output while minimizing distortion for clean, dynamic basses
- Leverages efficiencies of both vented and pavillon loaded systems
External Wide Dispersion Phase Plug
A wider, more even dispersion of high frequencies delivers an improved soundstage and imaging to hit that all-important sweet spot.

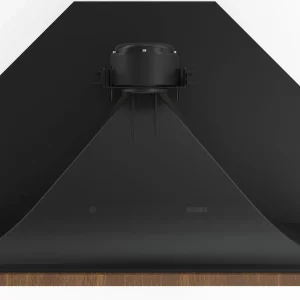

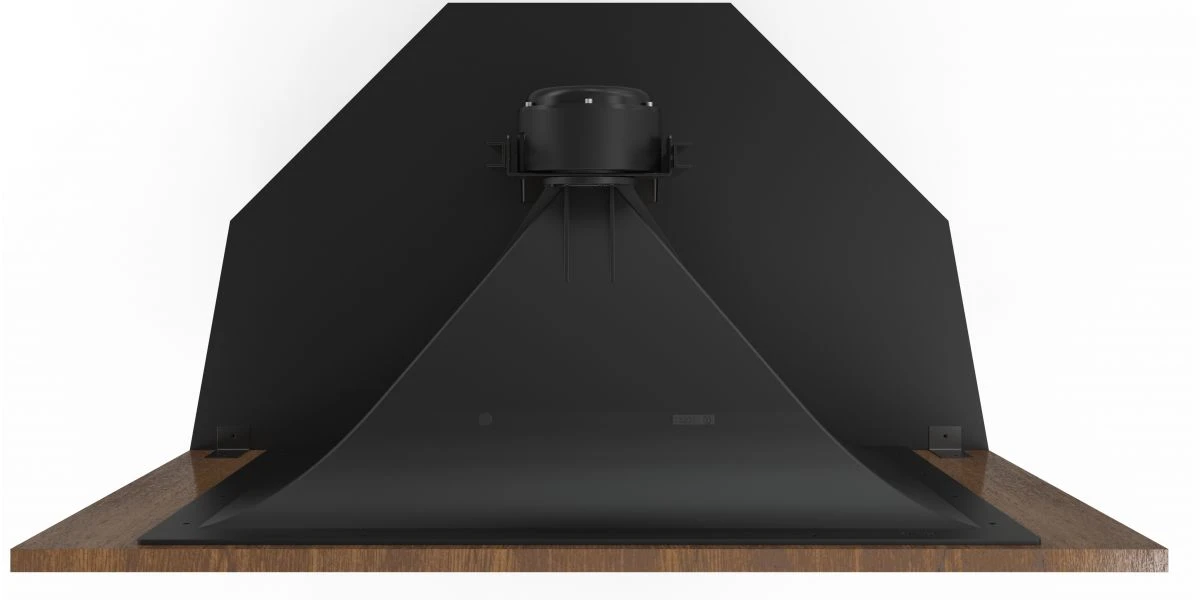

nState-of-the-Art High-Frequency Compression Driver
- Lowers crossover point below mid-range frequencies for seamless clarity
- High-efficiency, maximum output, minimal distortion
- Axiperiodic design ensures extended response and effortless performances
Active Crossover for Cleaner Sound
The active crossover maximizes output and adjusts the driver’s time delay and phase for true-to-life sound.
Heirloom-Quality, Showstopping Design
Beautifully crafted, these legendary speakers are available in book-matched real wood veneer in American Walnut or Black Ash.
American Ingenuity
The Klipsch Heritage Series is proudly designed and assembled in Hope, Arkansas, right where Paul W. Klipsch started it all back in 1946. Each speaker is built to order, meaning that every Heritage speaker is uniquely yours. You will want to pass these speakers onto future generations.
