Large choix en ligne Connectiques électrique Furutech Fi- 11 (cu)

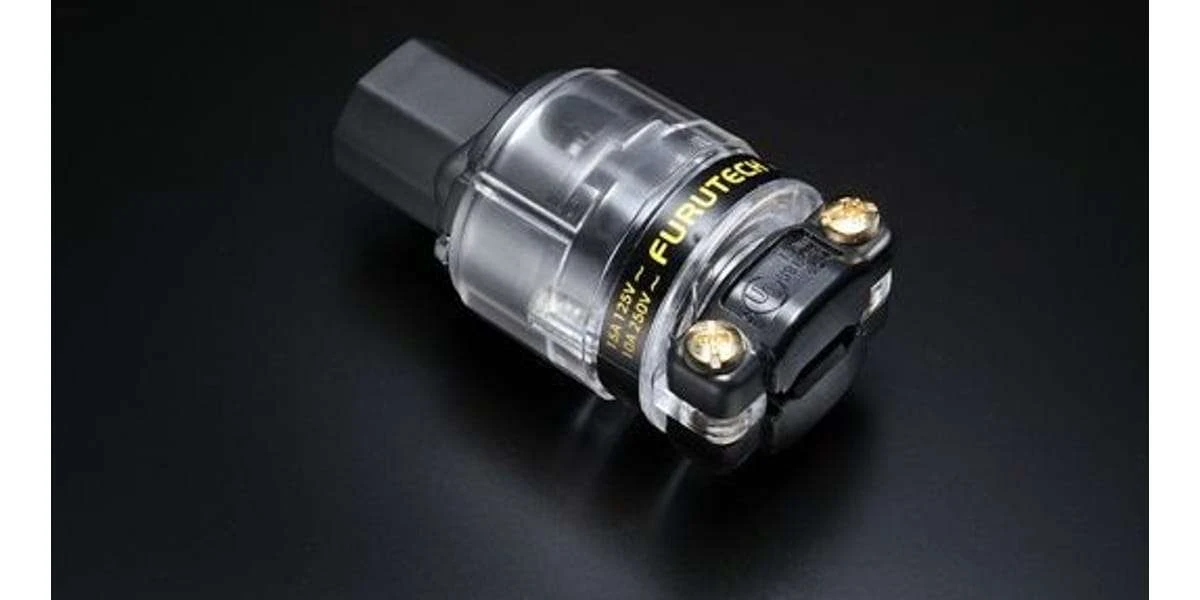

FI-11 (Cu)
High Performance Power IEC Connectors Unplated

RATING

15A/125V 10A/250V
< PS >E JET:15PJET086
USL /CNL Listed:04CA26110

FEATURES

– Unplated Phosphor bronze α (Alpha) Conductor
– Earth (Ground) Jumper System
– Nylon/fiberglass front body, polycarbonate shell

SPECIFICATIONS

– Specified for cable diameters of 6.6mm to 16mm (With a longer screw up to 20mm)
– Wire accommodation: Max 5.5 Square mm 10AWG
– Dimensions: Body length 43.9mm x 39mm diameter x 76.8mm overall length
– Rated: 15A/125V 10A/250V
