D-ILA Technology |
Oui |
---|---|
Native Contrast |
40000 : 1 |
Mastering Info Display |
Oui |
Native Resolution |
4096 x 2160px |
Number Of Chips |
3 |
8K / e-shift |
Oui |
Display Resolution |
8192 x 4320px |
Laser |
Oui |
Type |
BLU-Escent Laser Diode |
Life Time (Standard Mode) |
20000 heures |
Brillance |
2200 lm |
Dynamic Contrast |
∞ : 1 |
Info data |
MaxCLL and MaxFALL mastering data |
Color Space Range |
Auto/ YCbCr4444 / YCbCr422 / RGB |
Dynamic Light Power control |
Oui |
Manual Aperture |
Oui |
Range |
-15 (stops down) to 0 (opens up) |
100% REC 709 |
Oui |
Color Bit Depth |
12 bit |
ISFccc Certification |
Oui |
HDR10+ |
Oui |
Frame Adapt HDR |
Oui |
Theatre Optimizer |
Oui |
HLG |
Oui |
HDR Picture Modes |
BT.709 / BT.2020 / DCI / HDR |
Number of user presets |
10 |
Modes |
Mode 1 (gentle), Mode 2 (strong), Off |
Projection Display size (diagonal) |
60 – 200 inch |
Throw Ratio |
1.35-2.75:1 |
Diamètre |
65 mm |
Matériau |
All-glass |
Build |
17-element, 15-group in full aluminium lens barrel. |
Lens Shift |
Oui |
Range Horizontal |
± 34 % |
Range Vertical |
± 80 % |
Motorized Zoom |
Oui |
Motorized Shift |
Oui |
Motorized Focus |
Oui |
Zoom |
2 x |
Input Level Adjustment |
Auto / Standard (16-235) / Enhanced (0-255) / Super White (16-255) |
Memory Function |
Oui |
Lens Cover |
Oui |

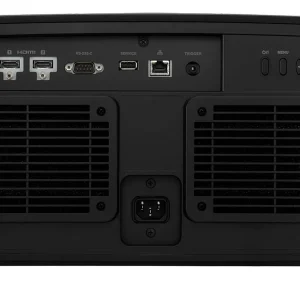

Number of connections |
2 |
Data Rate |
48 Gbps |
HDCP Version |
2.3 |
8K60P signal input |
Oui |
4K120p signal input |
Oui |
4K60P signal input |
Oui |
Video Signal range |
480p, 576p, 720p 60/50, 1080i 60/ 50, 1080p 120/ 100/ 60/ 50/ 30/ 25/ 24, 3840 x 2160p 120/ 100/ 60/ 50/ 30/ 25/ 24, 4096 x 2160p 120/ 100/ 60/ 50/ 30/ 25/ 24, 7680 x 4320p 60/ 50/ 30/25 /24 |
PC Signal range |
VGA / SVGA / XGA / WXGA / WXGA+ / SXGA / WSXGA+ / UXGA / WUXGA / WQHD (60) / WQHD (120) |
Auto Tone Mapping |
Oui |
Chip Type |
0.69-inch 4K D-ILA device |
3D Glasses (Optional) |
Oui, PK-AG3 |
Installation Mode |
Oui |
Power |
DC 12V / 100mA |
3D Synchro |
Oui |
LAN |
Oui |
RS-232 |
Oui |
SERVICE |
Oui |
3D Capability |
Oui |
3D Versions |
Frame Packing, Side-by-Side, Top & Bottom |
Frame Packing Resolutions |
720p 60/50, 1080p 24 |
Side-by-Side Resolutions |
720p 60/50, 1080p 60/50/24, 1080i 60/50 |
Top & Bottom Resolution |
720p 60/50, 1080p/24 |
3D Emitter (Optional) |
Oui, PK-EM2 |
Number of presets |
10 |
Picture Modes |
Natural, Cinema, HDR10+, Frame Adapt HDR, HDR10, HLG, Pan_PQ, 6 User modes |
Color Temperatures |
5500K, 6500K, 7500K, 9300K, High Bright, HDR10+, HDR10, HLG, Custom 1, Custom 2 |
Gamma Processing Depth |
12 bit |
Gamma Adjust |
HDR (Auto), HDR(PQ), HDR(HLG), 2.2, 2.4, 2.6, Cinema 1, Cinema 2, Pana_PQ, 3 Custom modes |
Color Management |
6-Axis adjustable CMS |
MPC |
Oui |
Low Latency Mode |
Oui |
Clear Motion Drive |
Oui |
Motion Enhance |
Oui |
Auto Calibration |
Oui |
Optional Probe needed |
Oui |
Trigger out |
Oui |
EDID Modes |
A and B (older hardware may need to use B settings) |
Standby Timer |
Oui |
Connector |
USB (Type A) for firmware update. |
Anamorphic Modes |
4 Modes (A, B, C, D) |
Control4 SDDP |
Oui |
Alimentation |
AC100-240V, 50/60Hz |
Projecteur en fonction |
420W |
Mode veille |
Eco Mode 0.20W |
Network Standby |
1.21W (LAN), 0.94W (RS-232C), 1.22W (LAN + RS232C) |
Délai de commutation |
Approx. 15 min. (To standby or networked standby; default) |
Fan Noise |
24 dB |
Eco Mode |
Oui |
Included settings |
Lens Control, Pixel Adjustment, Mask, Anamorphic on or off, Screen Adjust, Installation Style, Keystone, Pincushion, and Aspect |
Operating Humidity |
20% to 80% |
Operating Temperature |
5°C to 35°C |
Installation Angle |
Horizontal +/- 5 degree / Vertical +/- 10 degree |
Installation Height |
Below 2,000 m |

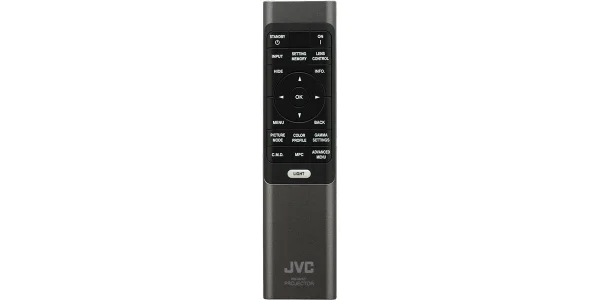

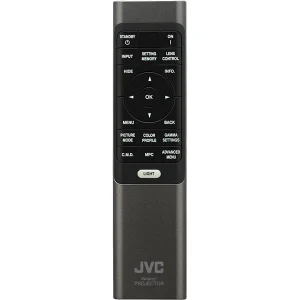

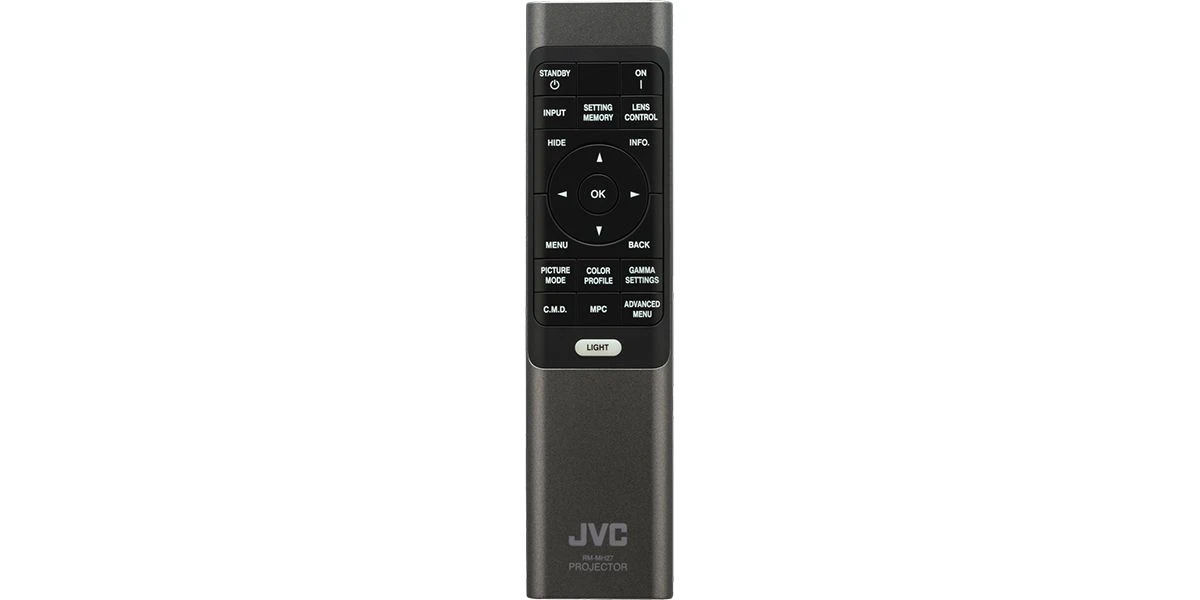

Télécommande |
Oui, RM-MH27 |
User Manual |
Oui |
Power Cord |
Oui |
Batteries |
Oui, 2 x AAA-size batteries |
Product Dimensions (WxHxD) |
500 x 234 x 505 (mm) |
Product Weight |
22,5 Kg |
Package Dimensions (WxHxD) |
640 x 415 x 665 (mm) |
Poids de l’emballage |
27,9 Kg |
General Note: |
Simulated pictures.The values for weight and dimensions are approximate.E.&O.E. Design and specifications subject to change without notice. |
World’s first home projector capable of inputting 8K60p/4K120p signals
These projectors adopt LSIs developed with the latest technology to process the vast amount of 8K input data, and an up converter to bring any source up to high definition 8K resolution. As a result, more beautiful and realistic video images full of contrast and reality can be enjoyed regardless of the source, from video streaming to 4K UHD-BD videos.

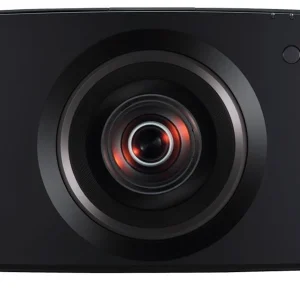

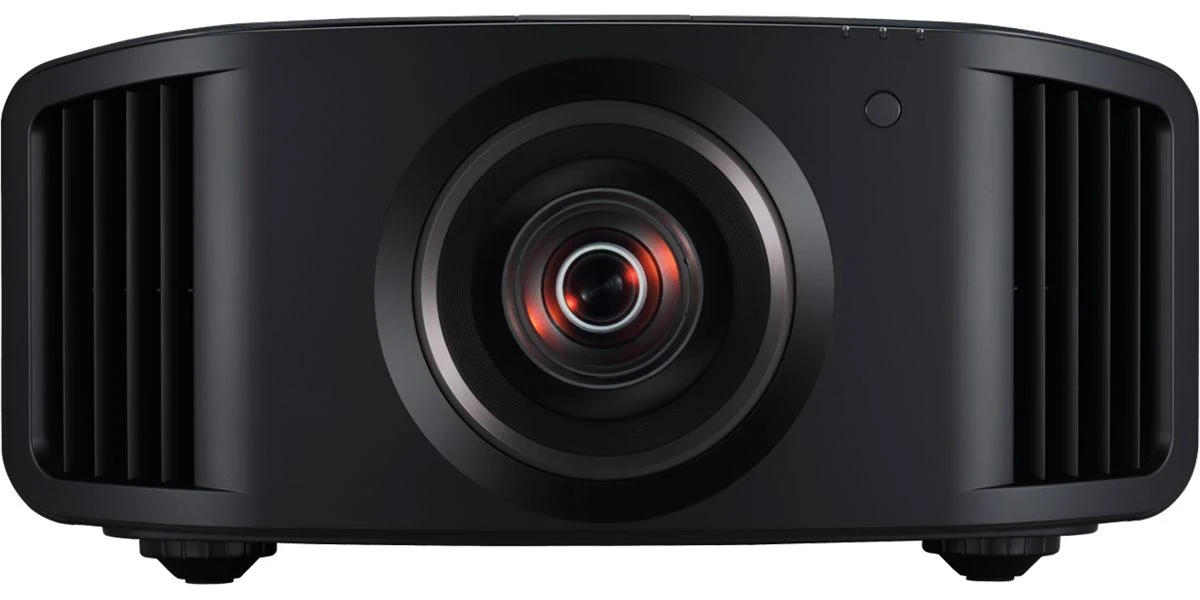

Essential all-glass lens to depict all the data in the 8K image
The high-end DLA-NZ9 is equipped with an 18-element, 16-group all-glass lens featuring a full aluminium lens barrel*1. To project highresolution 8K images to every corner of the screen, the projector incorporates five ED lenses calibrated for differences in the R/G/B refractive index to reduce chromatic aberration and colour fringing when lens shift kicks in to deliver precise reproduction of 4K- or 8K-resolution*2 projection.
HDR10+ Support allows a choice for two dynamic tone mappings
When it comes to reproducing the rich video information of HDR content including the extended brightness range, BT.2020 wide colour gamut and 10-bit gradation, rely on one of the new D-ILA projectors. New models support all HDR formats including HDR10 for Blu-ray and streaming, HLG for broadcasting, and the latest HDR10+ signal format with dynamic metadata compatibility.
JVC projectors are compatible with the two dynamic tone mappings of HDR10+ and Frame Adapt HDR. HDR10+ contains the metadata of the producer’s intentions for each scene, Frame Adapt HDR instantly analyses the peak brightness in HDR10 content using an original algorithm. Ensuring you can watch any HDR content in optimal picture quality.
4K120p input ideal for Low Latency mode
Because these projectors are equipped with 4K120p input, signal latency is infinitesimal, making it effective when displaying high frame-rate gaming content on large screens. What’s more, Low Latency Mode reduces delay in displaying PC signals and games, and improves response to the users’ rapid operations.

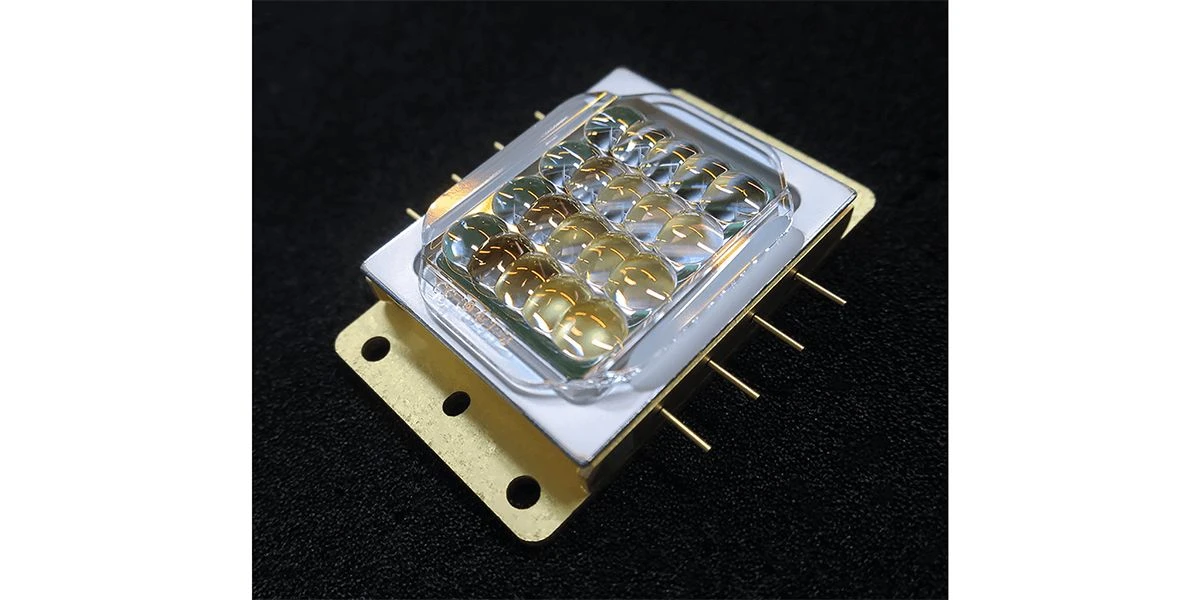

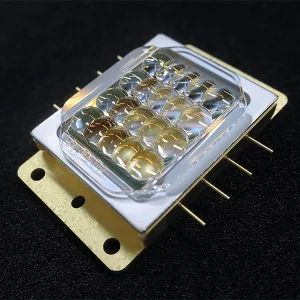

Reliability-proved BLU-Escent Laser Diode for exceptional brightness and longevity
The light source for these projectors is the latest blue laser diode BLU-Escent, which is featured in JVC projectors. BLUEscent technology has been adopted for home theatre projectors to achieve exceptional brightness and longevity of 20,000 hours*. Laser diode allows dynamic control of brightness to reproduce images that are closer to human perception. Combining the latest BLU-Escent package with the D-ILA device achieves detailed, smooth, powerful video expression.
- 8K/e-shift technology reproduces 8K image quality
- BLU-Escent Laser Light Source
- High brightness of 2,200 lm provides vibrant and dynamic images
- Native Contrast Ratio of 40,000:1 translates to a spectacular Dynamic Contrast Ratio of ∞ :1

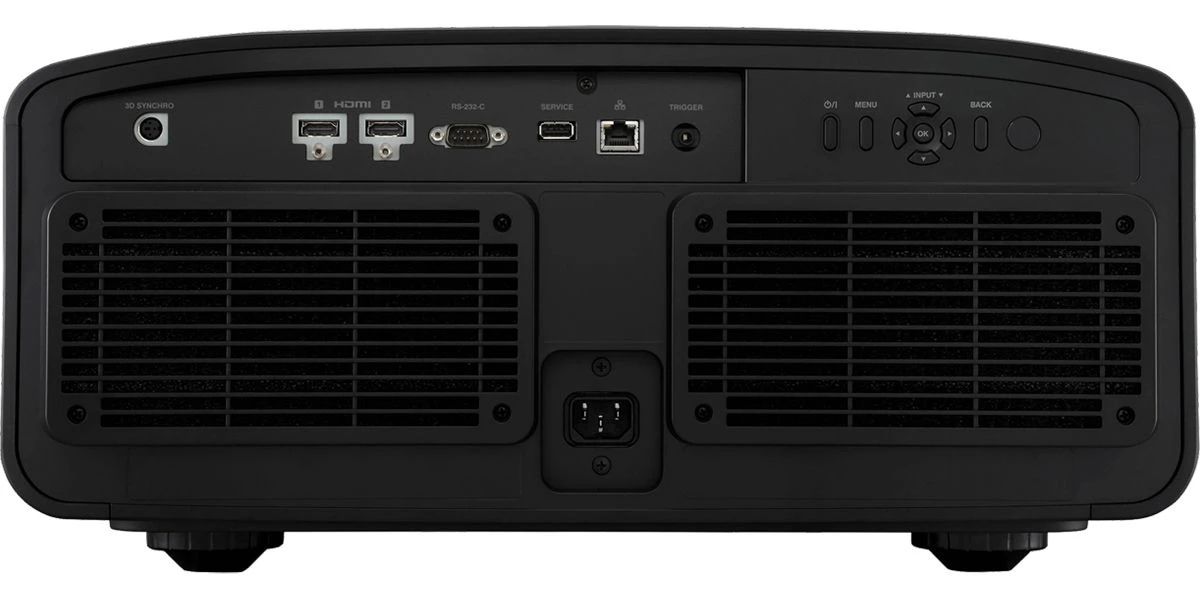

- 2x HDMI (48 Gbps, HDCP 2.3) inputs, supporting 8K60P and 4K120P input signals
- HDR10+ contains the metadata of the producer’s intentions for each scene, and with such data, the projector is able to automatically reproduce images as the creator intended.
- Frame Adapt HDR* dynamically tone maps any HDR10 content frame-by-frame or scene-by-scene and automatically performs adjustment to achieve optimal images close to reality as seen by human eyes. As a part the Frame Adapt HDR, the projector offers improved gamma processing accuracy from 12- to 18-bit equivalent to reproduce smoother and finer gradation
- Le projecteur passe automatiquement en mode d’image HDR lorsque des signaux HDR10 sont reçus.
- Auto Tone Mapping function automatically adjusts settings for optimum HDR10 image quality
- Compatible avec HLG (Hybrid Log-Gamma) qui devrait être largement utilisé dans les futures diffusions
- Nouvelles matrices D-ILA 4K natives 0.69” (4096 x 2160) x3
- Lentille Haute qualité de 65 mm de diamètre intégralement en verre avec 17 éléments et 15 groupes.
- Nine settings of Installation Mode include Lens Control, Pixel Adjustment, Mask, Anamorphic on or off, Screen Adjust, Installation Style, Keystone, Pincushion, and Aspect; stored installation modes for various environments can be called up.
- Low Latency Mode suppresses display delay for faster response when receiving signals from PC and game consoles
