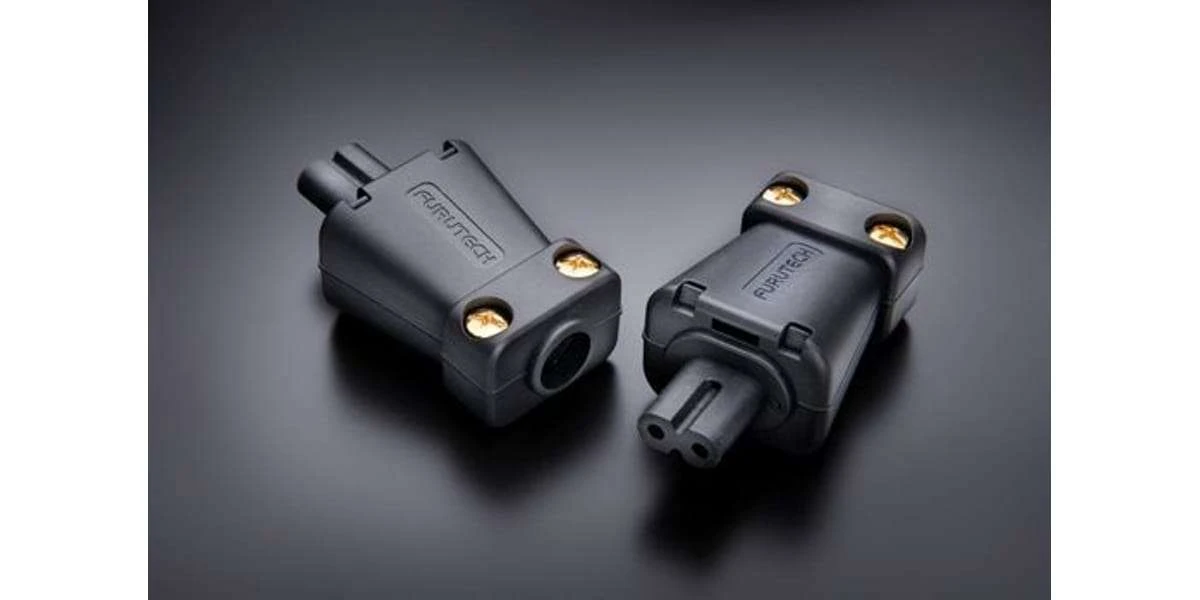

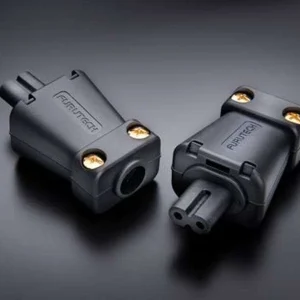

FI-8N (R) / (G)
High End Performance IEC Connectors

RATING

FI-8 N (Set screw Type)
7A/125V 2.5A/250V

FEATURES

– Furutech’s unique female conductor design features α (Alpha) Beryllium copper and Phosphor Bronze conductors
– Material: Nylon/ fiber glass body/caver and polycarbonate cable clamp.

SPECIFICATIONS

– Specified for cable outer diameters of 6.0mm ~ 13.0mm
– Wire accommodation: Max. 2.4mm dia.(Solid core) // 2.0 Sq.mm/14AWG (Strand wire)
– Connections: Set screw.
– Dimensions: 36.8mm × 28.2mm × 71.0 mm ± 0.5mm overall length
– Rated: 7A/125V 2.5A/250V
